W170 Transport Cart
Contact us for more information
- Sturdy, generously dimensioned edge and base profile sections, high-strength positive locking ensures permanent bonding to jacket and base metal.
- End and side walls reinforced with peripheral beading and corner beads.
- Chassis: two swivel and two fixed casters, corner-mounted, 4.9 in. diameter, 1.6 in. wide, easy running, rubber wheels, “non-marking,” roller bearings, thread guards.
- Casing joint riveted throughout, frame profile sections welded.
Choose from the tabs above for additional product options and details.
Sizes
| SKU | External L” x W” x H” | Internal L” x W” x H” | Volume ft3 | Lbs. |
|---|---|---|---|---|
| 40631 | 39.4 × 25.2 × 25.6 | 41.3 × 27.2 × 33.7 | 14.7 | 43.0 |
| 40635 | 49.2 × 27.6 × 29.5 | 51.2 × 29.5 × 37.6 | 23.1 | 52.2 |
| All dimensions approximate. | ||||

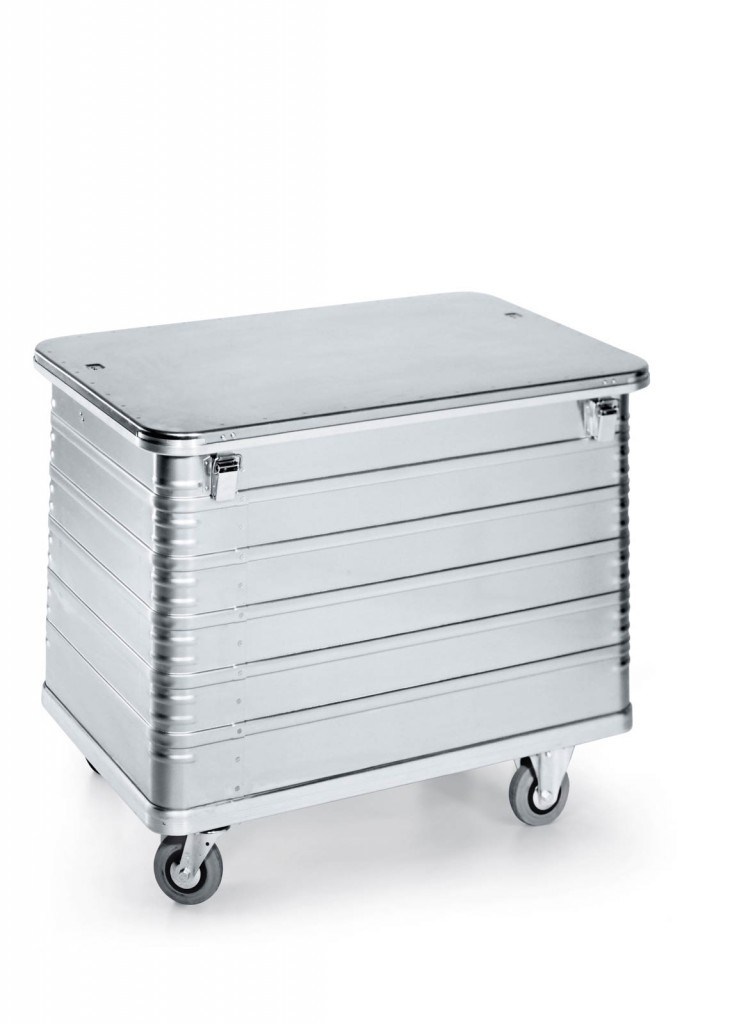

Hinged lid with belt strap and two snap fasteners.
SKU 40654 fits SKU 40631SKU 40675 fits SKU 40635
Tow bar with coupling Folds upwards. Firmly Attached towing device.
Chassis / Casters ∅4.9 in., 1.6 in. wide. / ∅6.3 in., 1.6 in. wide. / ∅7.9 in., 2.0 in. wide. On request, also available in stainless steel for container wash-down facilities.
Center Pivot ∅1.6 in. For lift-tilt device.
Brake for swivel casters.
Ergonomic handle Made from anodized aluminum section.
Peripheral fender frame Plastic-padded.
