W161 Spring-Loaded Cart

Contact us for more information

  • Sturdy, generously dimensioned edge and base profile sections, high-strength positive locking ensures permanent bonding to jacket metal.
  • Anodized, edge profile reinforced with abrasion resistant plastic padding.
  • Cart base can be moved vertically, ensuring that the contents are always kept at a constant height
  • Depending on the type of cart, the load capability can be varied from 66.1 to 429.9 lbs. (30 – 195 kg) in increments of 33.1 lbs. (15 kg) by means of replaceable lifting elements.
  • The moveable base does not tilt even when loaded on only one side
  • Chassis: two swivel and two fixed casters, corner-mounted, 3.9 in. diameter, 1.6 in. wide, easy running, rubber wheels, “non-marking,” with thread guards.
  • Casters arranged centrally for easy maneuvering even in the most confined spaces.
  • Corner-mounted chassis available on request.

Constant working height.

constant_loadlevel

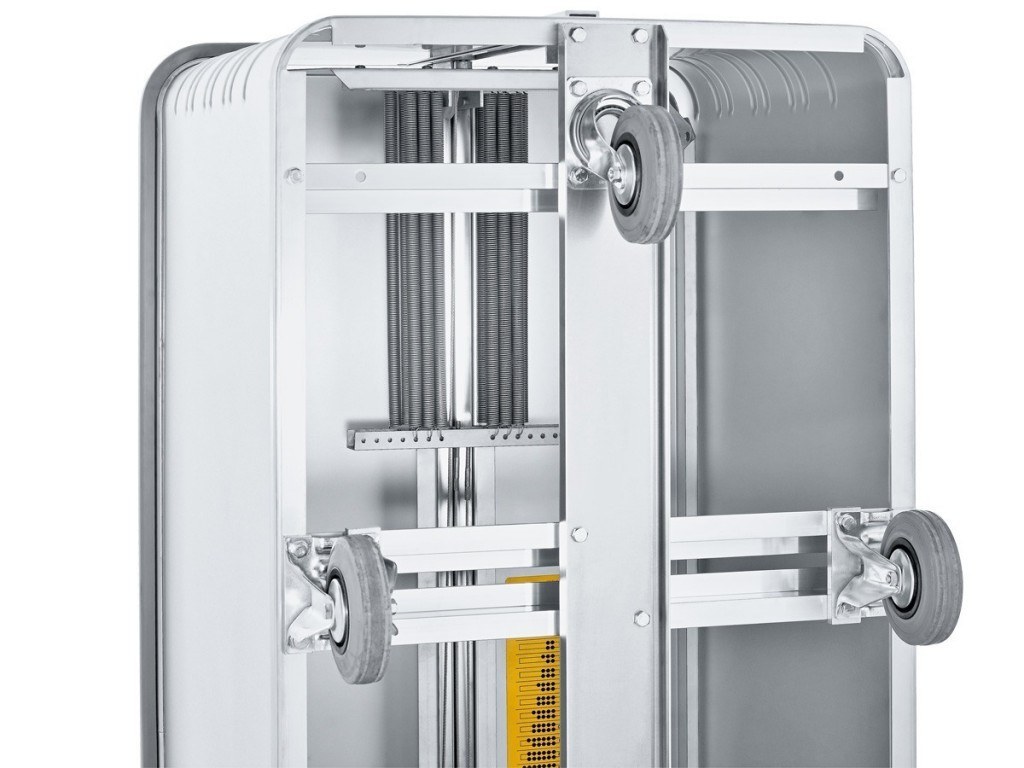

Replacable lifting element.

w161_lifting_element

Sizes

SKU External L” x W” x H” Internal L” x W” x H” Volume ft3 Lbs. Set for loading Lbs.
40644 39.4 × 25.6 × 19.1 41.3 × 28.0 × 32.3 11.1 54.0 198.4
40645* 39.8 × 16.5 × 18.1 41.3 × 18.5 × 31.5 6.9 46.3 66.1
40646 39.8 × 23.6 × 18.1 41.3 × 25.6 × 31.5 9.9 55.1 99.2
40756 55.5 × 27.6 × 22.8 57.5 × 29.5 × 36.2 20.1 69.4 330.7
All dimensions approximate.
*Chassis: 4 corner-mounted swivel casters.
