ZARGES Multi-function medical carts

General Details

Multi-Function carts are flexible, robust, and intelligently designed. Everything you need, when you need it. When it comes to safe transportation, practical storage and efficient materials management: our multi-function carts are ideally suited to go about your everyday work. Choose from the tabs above for additional product options and details.

Single-row multi-function medical carts with hook-on insert rails

Steel, plastic-coated, hygienic and easy to clean.
Color: Light grey, RAL 7035.
Ergonomic handle, anodized aluminum.
Four swivel casters, 3.9 in. diameter, two with brakes.

SKU 46440

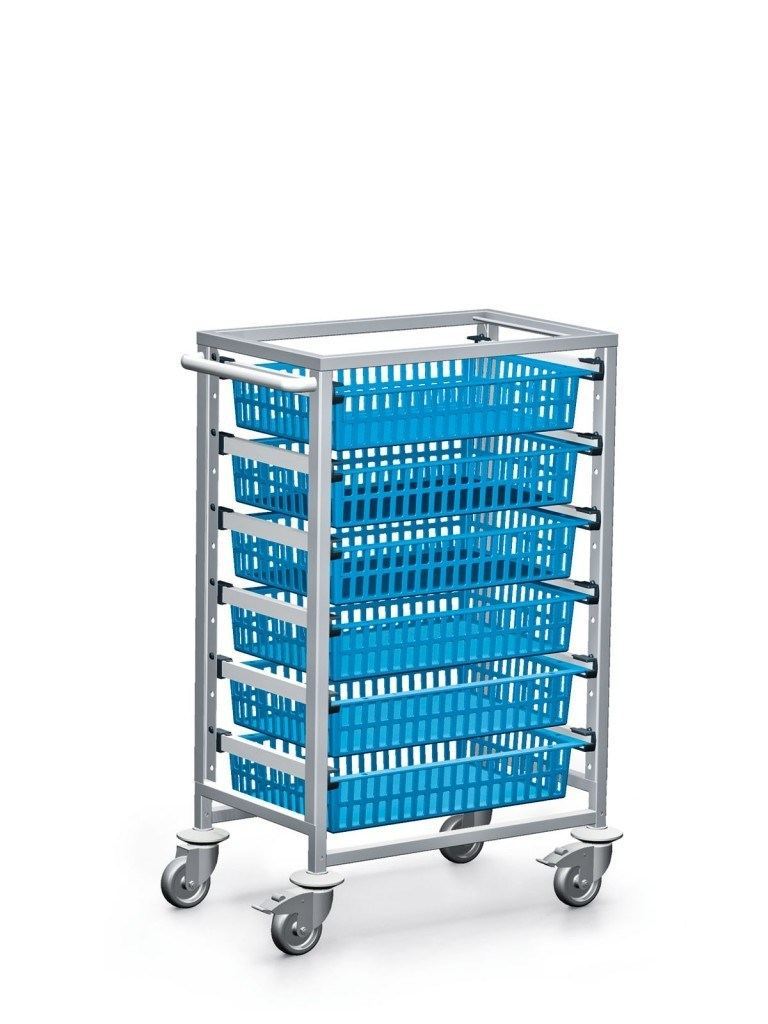

with baskets

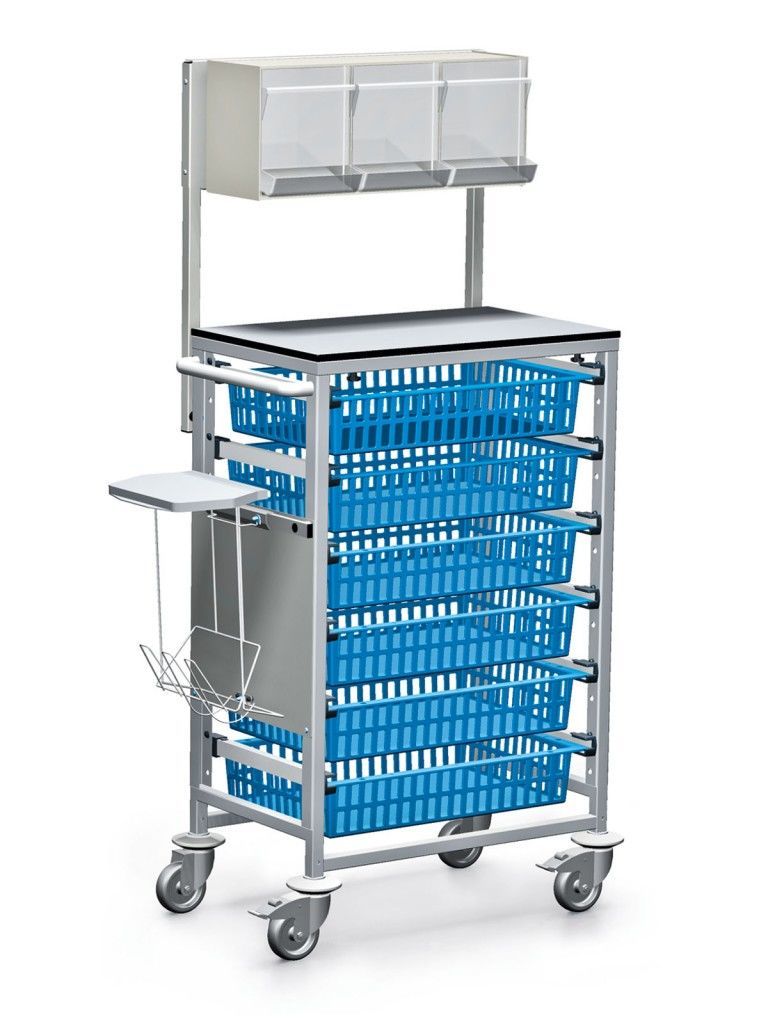

ZARGES multi-function cart with bar structure , standard rail and HPL worktop SKU 46440

with optional HPL worktop, standard rail, and bar structure

Available Sizes

SKU	Description	L” × W” × H”	Slide-in units	Material
46440	Slide-in unit 23.6 × 15.7 in.	30.1 × 19.1 × 43.3	Variable per module	Plastic-coated steel
All dimensions approximate.

Optional Accessories

SKU	Description	L” × W” × H”	Material
46272	Insert rail for straight installation	15.7 L	–
46273	Insert rail for diagonal installation	16.5 L	–
362668	HPL worktop	26.7 × 16.3	HPL
367860	Standard rail with adapter part	1.3 × 15.7 × 17.9	Anodized aluminum
379036	Bar structure, single-row	–	Anodized aluminum
All dimensions approximate.

Single-row multi-function medical carts with fixed insert rails

Standard version steel, plastic-coated, hygienic and easy to clean.
Color: Light grey, RAL 7035.
Ergonomic handle.
Four swivel casters, 3.0 in. diameter, two with brakes.
Also available in stainless steel.

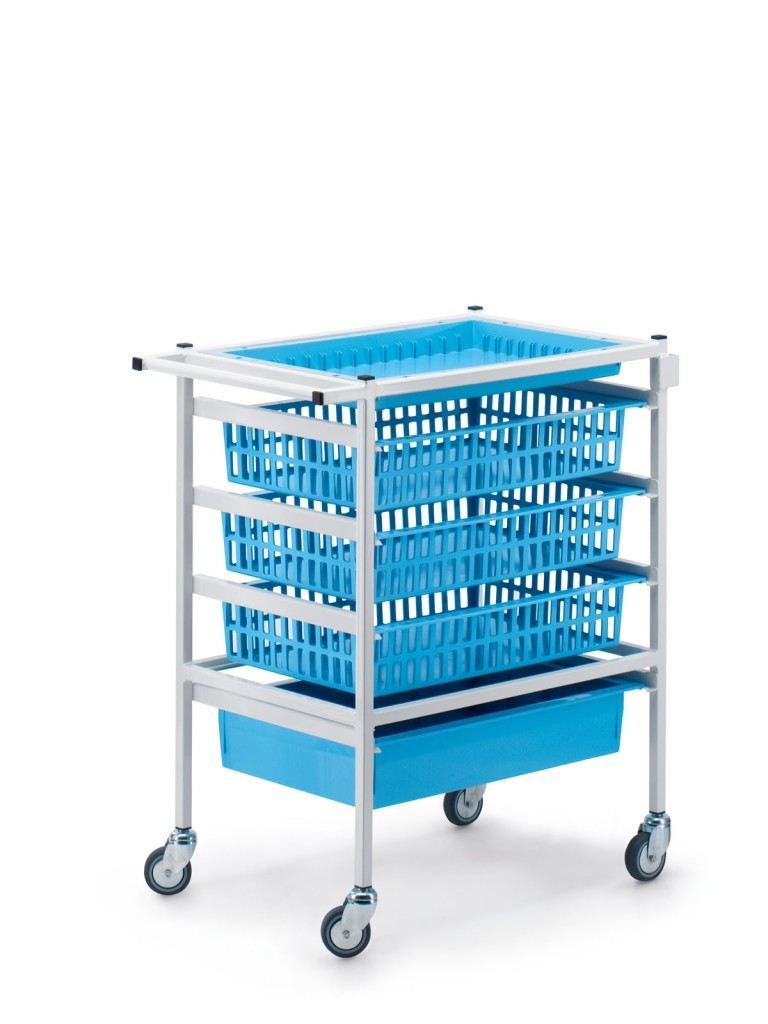

SKU 46090

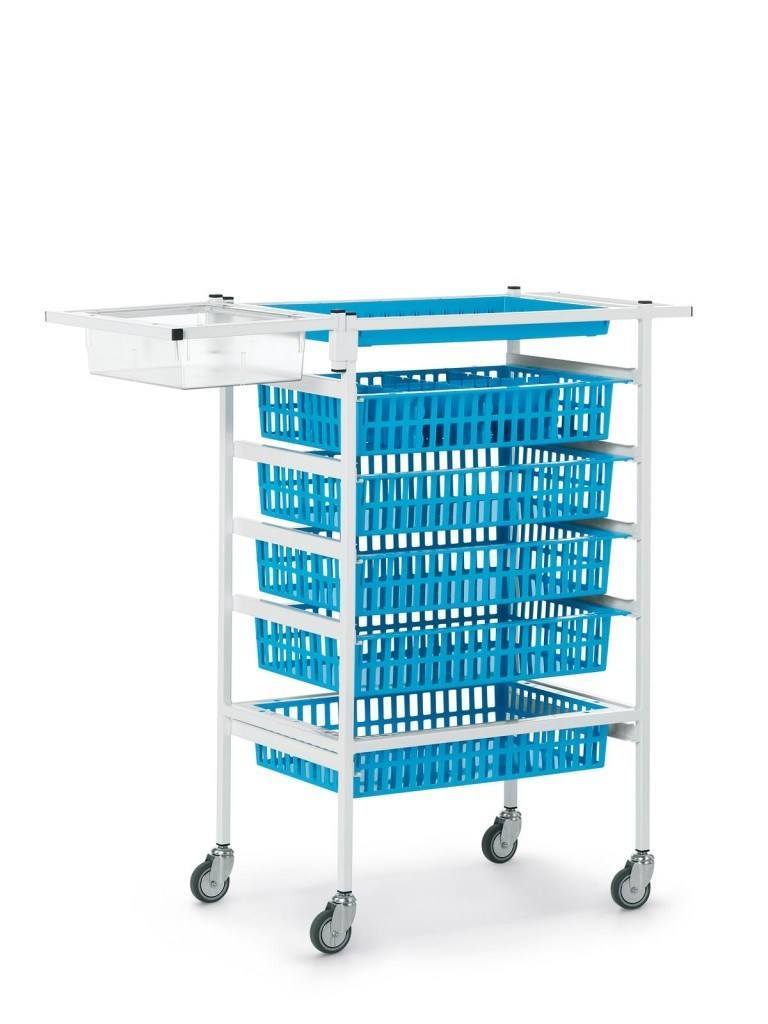

SKU 46094 and optional SKU 46095

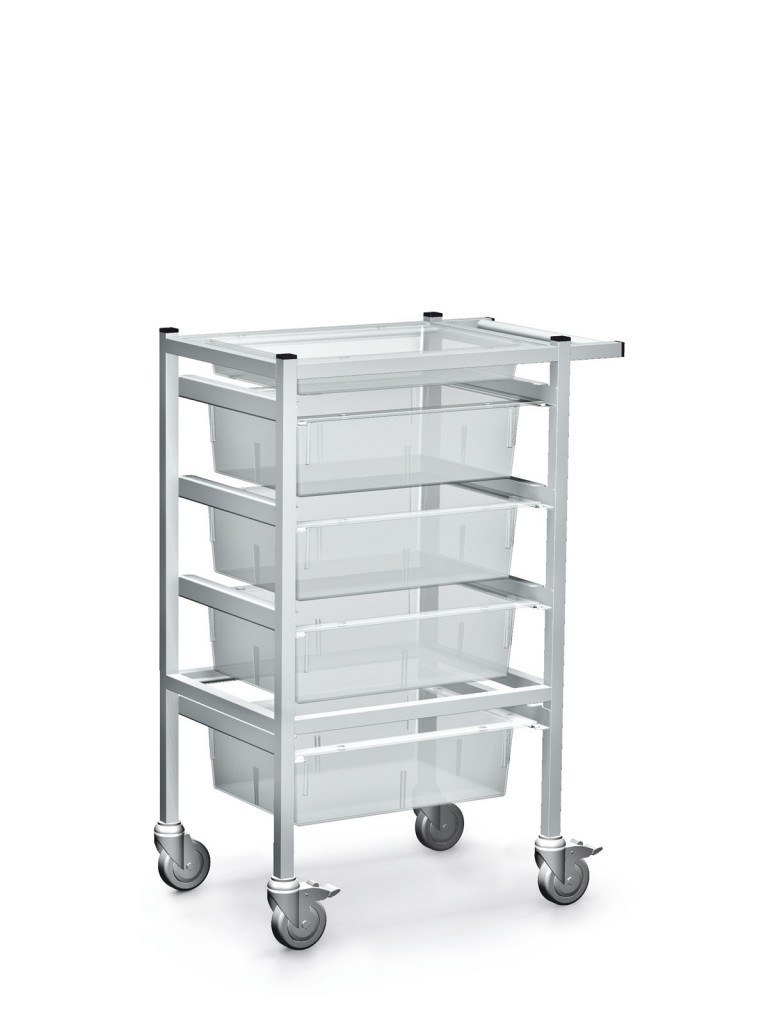

SKU 349315

Available Sizes

SKU	Description	L” × W” × H”	Slide-in units	Material
46090	Slide-in unit 23.6 × 15.7 in., designed for half-module frame	30.1 × 18.3 × 34.0	4	Plastic-coated steel
46094	Slide-in unit 23.6 × 15.7 in., designed for half-module frame	30.1 × 18.3 × 43.3	5	Plastic-coated steel
349315	Half-module slide-in unit 15.7 × 11.8 in.	21.6 × 14.1 × 31.5	4	Plastic-coated steel
351529	Slide-in unit 23.6 × 15.7 in.,designed for half-module frame	30.1 × 18.3 × 34.0	4	Stainless steel 1.4301
361069	Slide-in unit 23.6 × 15.7 in., designed for half-module frame	30.1 × 18.3 × 43.3	5	Stainless steel 1.4301
All dimensions approximate.

Optional Accessories

SKU	Description	L” × W” × H”	Material
46095	Frame for half-module, fits SKU 46090 / 46094	13.6 × 18.0 × 3.9	Plastic-coated steel
364689	Frame for half-module, fits SKU 351529 / 361069	13.6 × 18.0 × 3.9	Stainless steel 1.4301
All dimensions approximate.

Further accessories such as HPL worktop and standard rail available by request.

Double-row multi-function medical carts with hook-on insert rails

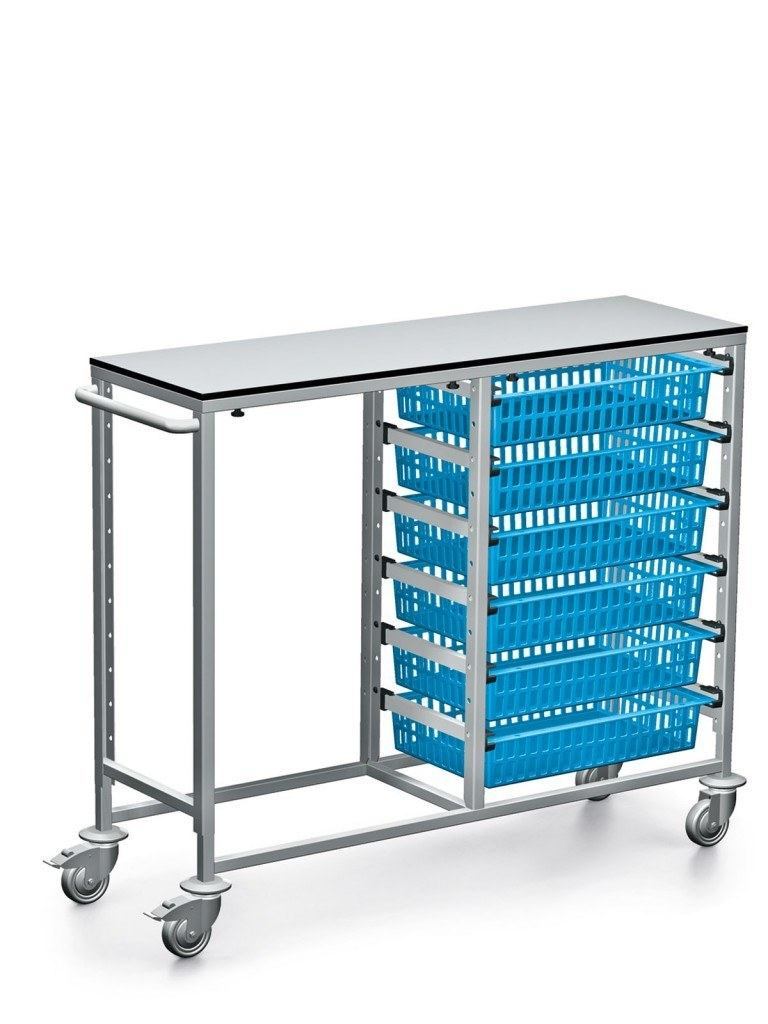

ZARGES double row multi-function cart with hook-on insert rails SKU 379149

Steel, plastic-coated, hygienic and easy to clean.
Color: Light grey, RAL 7035.
Ergonomic handle.
HPL worktop.
Four swivel casters, 3.9 in. diameter, two with brakes.

Available Sizes

SKU	Description	L” × W” × H”	Slide-in units	Material
379149	2x slide-in unit 23.6 × 15.7 in., hole spacing 2.1 in.	54.6 × 19.1 × 43.3	Variable per module	Plastic-coated steel
All dimensions approximate.

Optional Accessories

SKU	Description	L”	Material
46272	Insert rail for straight installation	15.7	Anodized aluminum
46273	Insert rail for diagonal installation	16.5	Anodized aluminum
All dimensions approximate.

Double-row multi-function medical carts with fixed insert rails

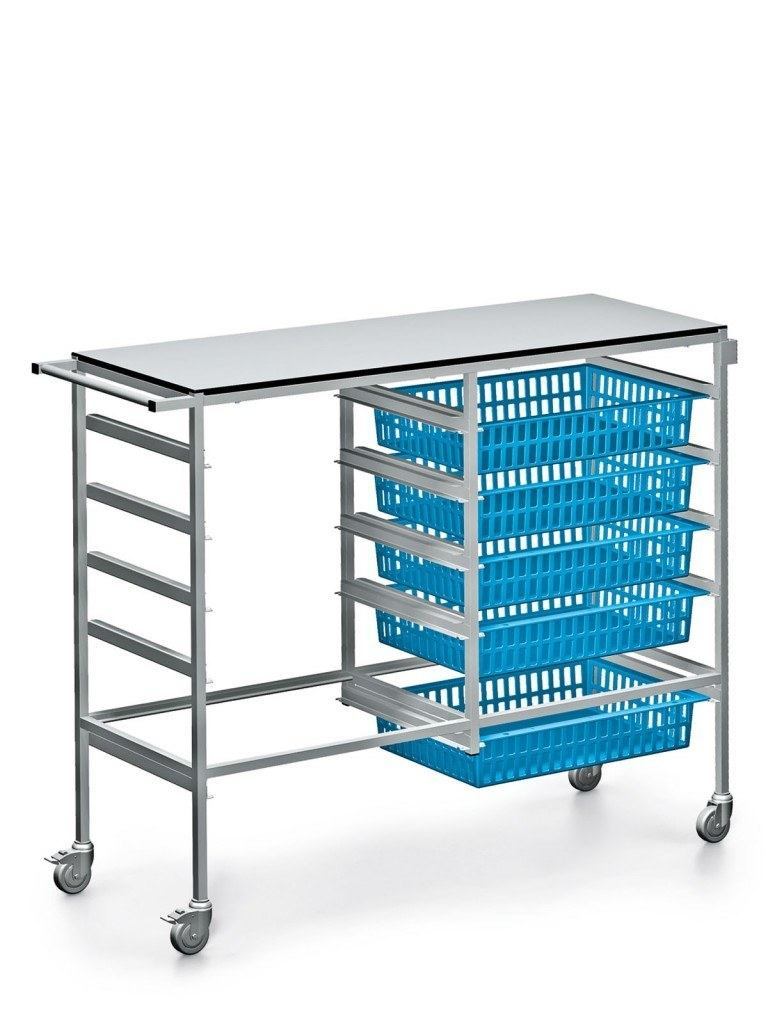

ZARGES double row multi-function cart with fixed insert rails SKU 371192

Steel, plastic-coated, hygienic and easy to clean.
Color: Light grey, RAL 7035.
Ergonomic handle.
HPL worktop.
Four swivel casters, 3.0 in. diameter, two with brakes.

Available Sizes

SKU	Description	L” × W” × H”	Slide-in units	Material
371192	2x slide-in unit 23.6 × 15.7 in., designed for half-module frame	54.8 x 18.3 x 43.3	2 x 5	Plastic-coated steel
All dimensions approximate.

Modules

ABS Modules, Baskets and Dividers

ABS modular basket approx. 23.6″ x 15.7″ × 7.9″. SKU 46000

ABS modular basket approx. 23.6″ x 15.7′ × 3.9″. SKU 46005

ABS Module Lid approx. 23.6″ x 15.7″× 0.6″. SKU 46201

ABS module approx. 23.6″ x 15.7″× 2.0″. SKU 46011

ABS module approx. 23.6″ x 15.7″ × 3.9″. SKU 46202

ABS module (not sub-dividable) approx. 23.6″ x 15.7″ × 7.9″. SKU 46200

Lengthwise divider (for 46000) approx. 23.6″ × 7.9″. SKU 46027

Crosswise divider (for 46000) approx. 15.7″ × 7.9″. SKU 46028

Lengthwise divider (for 46005 / 46202) approx. 23.6″ × 3.9″. SKU 46029

Crosswise divider (for 46005 / 46202) approx. 15.7″ × 3.9″. SKU 46030

Lengthwise divider (for 46011) approx. 23.6″ × 2.0″. SKU 46034

Crosswise divider (for 46011) approx. 15.7″ × 2.0″. SKU 46035

Polycarbonate Modules, Baskets and Dividers

Polycarbonate modular basket approx. 23.6″ x 15.7″ x 7.9″. SKU 46001

Polycarbonate modular basket approx. 23.6″ x 15.7″ x 3.9″ SKU 46004

Polycarbonate module approx. 23.6″ x 15.7″ x 3.9″ SKU 46203

Polycarbonate Medication Module, SKU 46010

Polycarbonate medication module approx. 23.6″ x 15.7″ x 2.0″ SKU 46010

Lengthwise divider for 46001. approx. 23.6″ x 7.9″ SKU 46040

Crosswise divider for for 46001. approx. 15.7″ x 7.9″ SKU 46041

Lengthwise divider for 46004/46203/46205. approx. 23.6″ x 3.9″ SKU 46042

Crosswise divider for 46004/46203/46205. approx. 15.7″ x 3.9″ SKU 46043

Lengthwise divider for 46010/46204. approx. 23.6″ x 2.0″ SKU 46031

Crosswise divider for 46010/46204. approx. 15.7″ x 2.0″ SKU 46032

Polycarbonate Half-Modules and Dividers

Polycarbonate half-module approx. 11.8″ x 15.7″ x 3.9″. SKU 46003

Polycarbonate half-module approx. 11.8″ x 15.7″ x 2.0″. SKU 46002

Polycarbonate half-module can be subdivided, approx. 11.8″ x 15.7″ x 3.9″. SKU 46006

Polycarbonate half-module can be subdivided, approx. 11.8″ x 15.7″ x 2.0″. SKU 46007

Lengthwise divider for 46006, approx. 15.7″ x 3.9″. SKU 46036

Crosswise divider for 46006, approx. 11.8″ x 3.9″. SKU 46037

Lengthwise divider for 46007, approx. 15.7″ x 2.0″. SKU 46038

Crosswise divider for 46007, approx. 11.8″ x 2.0″. SKU 46039

Submodule as an insert can be used for modules/modular baskets, approx. 9.4″ x 4.3″ x 3.0″. SKU 46021

Polycarbonate sub-module insert, SKU 46033

Crossways divider for submodule, approx. 4.1″ x 2.9″ (L x H). SKU 46033

ABS Modular Drawers

ABS modular drawer approx. 23.6″ x 15.7″ x 8.9″/9.6″. SKU 46206

ABS modular drawer approx. 23.6″ x 15.7″ x 4.9″/5.7″. SKU 46205

ABS modular drawer approx. 15.7″ x 23.6″ x 8.9″/9.6″. SKU 46209

ABS modular drawer approx. 15.7″ x 23.6″ x 4.9″/5.7″. SKU 46208

ABS modular drawer approx. 23.6″ x 15.7″ x 3.0″/3.7″. SKU 46204

Lengthwise divider for 46206 approx. 23.6″ x 7.9″. SKU 46040

Crosswise divider for 46206 approx. 15.7″ x 7.9″. SKU 46041

Lengthwise divider for 46203/46205 approx. 23.6″ x 3.9″. SKU 46042

Crosswise divider for 46203/46205 approx. 15.7″ x 3.9″. SKU 46043

Lengthwise divider for 46204 approx. 23.6″ x 2.0″. SKU 46031

Crosswise divider for 46204 approx. 15.7″ x 2.0″. SKU 46032

ABS Modular Lockable Drawer, SKU 46466+46468

ABS modular drawer lockable approx. 23.6″ x 15.7″ x 5.9″. SKU 46466, approx. 15.7″ x 23.6″ x 5.9″. SKU 46468

Module Accessories

Divider fixing Steel, blue, powder-coated. approx. 1.0″ × 0.4″ × 0.4″. SKU 46060

T-connector (ABS). Attached at specified break points. approx. 1.9″ × 1.0″ × 1.1″. SKU 46022

Drawer stop grayish-white, one-piece. For modules and modular baskets. SKU 46026

Stopper for Tambour-door equipped models only. SKU 46467

Distribution System for Medicine

For reliable distribution of medicine and other supplies.

With medication boxes for 7 + 1 days.
All medication boxes can be removed individually and fixed in position on the tray.
Daily medication for up to 8 patients can be prepared.
The distribution tray is based on the ISO standard and can be stored both in the modular cupboard and in the modular distribution cart on support systems (support wall and telescopic rail), including safety stop system.

ZARGES distribution system for medicine SKU 46179

SKU	Description	L” × W” × H”
46179	Complete set	23.6 × 14.6 × 1.7
All dimensions approximate.

Individual Parts

SKU	Description	L” × W” × H”
46178	Medi-Box grey	2.6 × 0.9 × 0.7
46177	Medi label holder	12.4 × 2.4 × 5.5
46176	Medi sliding cover, PC	2.4 × 0.7 × 32.5
46175	Medi divider set, blue	2.4 × 0.7 × 32.5
46174	Distribution tray for medication	23.6 × 14.3 × 1.4
All dimensions approximate.

Accessories

SKU	Description	L” × W” × H”
46173	Medi divider set, red	2.4 × 0.7 × 32.5
46172	Medi label sheet	29.7 × 8.3 × 0.1
46171	Medi central opening device	25.6 × 15.7 × 75
All dimensions approximate.

Individual parts can be ordered separately

Cassettes for Medicine

Organization made easy.

Outside dimensions in accordance with ISO standard 3394.
Lockable front flap.
Slides onto support wall.
Designed to hold medication containers.
Various order cassette options.
Made from anodized aluminum.

ZARGES medical cart with medicine cassette

SKU 366802

SKU 367345

SKU 367346

Triple row, open

SKU	Description	L” × W” × H”
366802	Medication cassette, single-row	23.6 × 15.7 × 7.3
36713.6	Medication cassette, double-row	23.6 × 15.7 × 11.1
367346	Medication cassette, triple-row	23.6 × 15.7 × 15.0
46190	Medication container	11.8 × 7.3 × 3.2
46191	Medication container	11.8 × 3.6 × 3.2
46194	Divider for medication container SKU 46191	3.6 (W)
46195	Divider for medication container SKU 46190	6.6 (W)
All dimensions approximate.

Labeling System

Intelligent, innovative and efficient: the ZARGES labeling system.

Click to download PDF.
ZARGES labeling system
