Modular Shelving

Contact us for more information

The ZARGES shelving system comes into its own where orderly and safe storage of materials is of the essence, The flexible, modular system can be adapted to suit your specific requirements, with components that can be combined with other ZARGES systems, helping to improve efficiency in the supply chain. Choose from the tabs above to see materials, accessories and modules.

medical shelving diagram

Systematic and reliable medical storage.

  1. Shelf segments. Pre-assembled.
  2. Connecting rod.
  3. Diagonal braces. Provided for each second unit.
  4. Fasteners made of stainless steel. Provided a set per unit.
  5. Straight insert rails.
  6. Diagonal insert rails.
  7. Shelf.
  • Height-adjustable feet.
  • Total height: approx. 78.7″
  • Hole spacing: 2.8″
  • Hook-on insert rails made of anodized aluminum with sturdy, abrasion-proof end caps in fiberglass-reinforced plastic PA6.

23.6″ Shelf Depth

Aluminum SKU Steel SKU Stainless SKU Description Number of units For each unit, add:
1 2 3 4
46558 46140 46142 Shelving segment, 78.7 × 23.6 in. (H × D) 2 3 4 5 1
46560 46274 46144 Connecting rod, 18.9 in. (L) 4 8 12 16 4
46562 46276 46146 Connecting rod, diagonal, 47.5 in. (L) 1 1 2 2 1
46563 46280 46151 Set of connecting elements 2 3 4 5 1
46565 46072 46147 Shelf compartment, 31.5 × 23.6 in. (L × D) TBD by customer
46270 Aluminum insert rail, 23.6 in. (D), straight TBD by customer
46271 Aluminum insert rail, 24.4 in. (D), diagonal TBD by customer
Insert rails and shelves ordered separately. All dimensions approximate.



15.7″ Shelf Depth

Aluminum SKU Steel SKU Stainless SKU Description Number of units For each unit, add:
1 2 3 4
46559 46141 46143 Shelving segment, 78.7 × 15.7 in. (H × D) 2 3 4 5 1
46561 46275 46145 Connecting rod, 26.7 in. (L) 4 8 12 16 4
46562 46276 46146 Connecting rod, diagonal, 47.5 in. (L) 1 1 2 2 1
46563 46280 46151 Set of connecting elements 2 3 4 5 1
46566 46079 46149 Shelf compartment, 31.5 × 15.7 in. (L × D) TBD by customer
46272 Aluminum insert rail, 15.7 in. (D), straight TBD by customer
46273 Aluminum insert rail, 16.5 in. (D), diagonal TBD by customer
Insert rails and shelves ordered separately. All dimensions approximate.

Aluminum

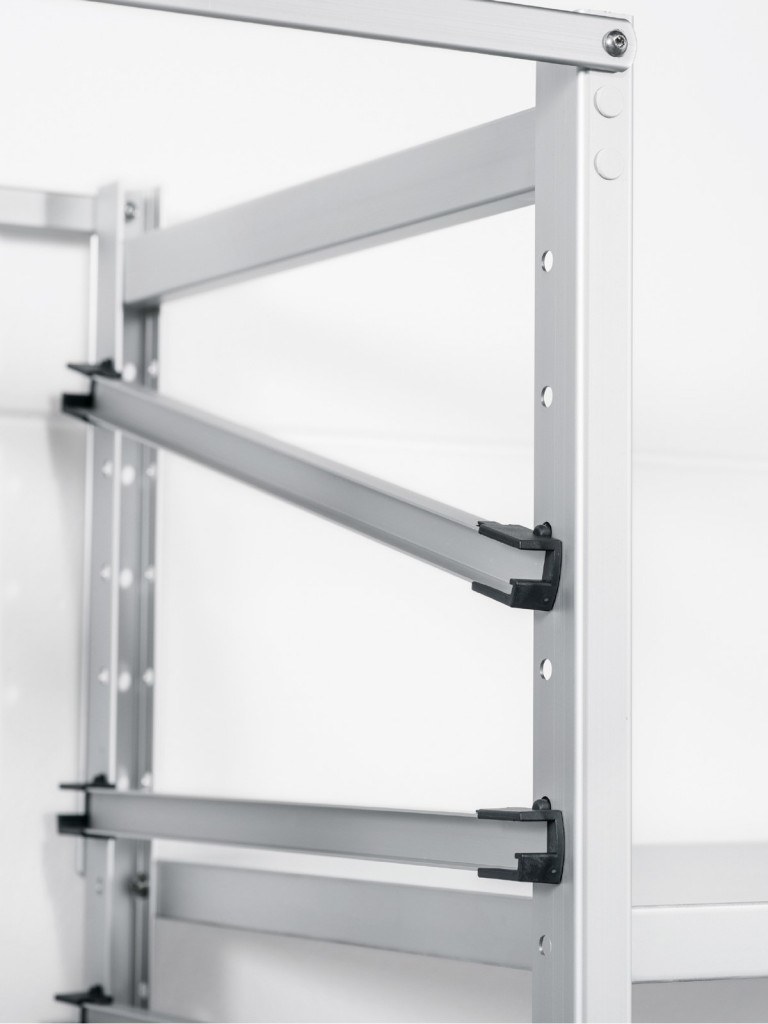

Aluminum Modular Shelving

  • Anodized aluminum.
  • Frame made from U-section, bolted, dimensions 1.3 × 1.3 × 0.08 in.

Steel

Steel Modular Shelving

  • Powder-coated steel.
  • Substructure made from robust square tubing 1.2 × 1.2 in.
  • Frame made from U-section, welded, dimensions 1.3 × 1.3 × 0.08 in.
  • Light grey, RAL 7035.
  • Also available in stainless steel.

Casters for Aluminum Shelving, SKU 46570

Caster set

  • Caster set comprising 4 swivel casters, 2 with wheel brake
  • Only for aluminum shelving.
SKU Details Diameter
46570 Dual casters 2.0 in.
Lid Shelf Compartment for 23.6

Lid/shelf compartment

  • 15.7 in. × 23.6 in.
  • Only for Shelving depth 23.6 in.
SKU Details
46073 Shelf compartment/lid, steel
46567 Shelf compartment/lid, aluminum
46148 Shelf compartment/lid, stainless steel
Telescopic Rails for Shelving

Telescopic rails for hooking on to adapter part

Adapter parts

SKU Details
373696 Mounting panel for telescopic rail, 23.6 in. depth
378902 Mounting panel for telescopic rail 15.7 in. depth



Matching telescopic rails

SKU Details
46013 Telescopic rail, hook-on, 23.6 in. depth, right
46014 Telescopic rail, hook-on, 23.6 in. depth, left
46515 Telescopic rail, hook-on, 15.7 in. depth, right
46516 Telescopic rail, hook-on, 15.7 in. depth, left

  1. ABS Modules, Baskets and Dividers
    46000 modular basket

    ABS modular basket approx. 23.6″ x 15.7″ × 7.9″. SKU 46000

    46005 modular basket

    ABS modular basket approx. 23.6″ x 15.7′ × 3.9″. SKU 46005

    ABS Module lid SKU 46201

    ABS Module Lid approx. 23.6″ x 15.7″× 0.6″. SKU 46201

    46011 ABS module

    ABS module approx. 23.6″ x 15.7″× 2.0″. SKU 46011

    46202 ABS module

    ABS module approx. 23.6″ x 15.7″ × 3.9″. SKU 46202

    46200 ABS modular basket

    ABS module (not sub-dividable) approx. 23.6″ x 15.7″ × 7.9″. SKU 46200

    46207 lengthwise divider

    Lengthwise divider (for 46000) approx. 23.6″ × 7.9″. SKU 46027

    46028 crosswise divider

    Crosswise divider (for 46000) approx. 15.7″ × 7.9″. SKU 46028

    46029 lengthwise divider

    Lengthwise divider (for 46005 / 46202) approx. 23.6″ × 3.9″. SKU 46029

    46030 crosswise divider

    Crosswise divider (for 46005 / 46202) approx. 15.7″ × 3.9″. SKU 46030

    46034 lengthwise divider

    Lengthwise divider (for 46011) approx. 23.6″ × 2.0″. SKU 46034

    46035 crosswise divider

    Crosswise divider (for 46011) approx. 15.7″ × 2.0″. SKU 46035

  2. Polycarbonate Modules, Baskets and Dividers
    Polycarbonate Modular Basket, SKU 46001

    Polycarbonate modular basket approx. 23.6″ x 15.7″ x 7.9″. SKU 46001

    Polycarbonate Modular Basket, SKU 46004

    Polycarbonate modular basket approx. 23.6″ x 15.7″ x 3.9″ SKU 46004

    Polycarbonate Module, SKU 46203

    Polycarbonate module approx. 23.6″ x 15.7″ x 3.9″ SKU 46203

    Polycarbonate Medication Module, SKU 46010

    Polycarbonate medication module approx. 23.6″ x 15.7″ x 2.0″ SKU 46010

    Polycarbonate divider, SKU 46040

    Lengthwise divider for 46001. approx. 23.6″ x 7.9″ SKU 46040

    Polycarbonate divider, SKU 46044

    Crosswise divider for for 46001. approx. 15.7″ x 7.9″ SKU 46041

    46042_PCModul

    Lengthwise divider for 46004/46203/46205. approx. 23.6″ x 3.9″ SKU 46042

    Polycarbonate divider, SKU 46043

    Crosswise divider for 46004/46203/46205. approx. 15.7″ x 3.9″ SKU 46043

    Polycarbonate divider, SKU 46031

    Lengthwise divider for 46010/46204. approx. 23.6″ x 2.0″ SKU 46031

    Polycarbonate divider, SKU 46032

    Crosswise divider for 46010/46204. approx. 15.7″ x 2.0″ SKU 46032

  3. Polycarbonate Half-Modules and Dividers
    Polycarbonate half-module, SKU 46003

    Polycarbonate half-module approx. 11.8″ x 15.7″ x 3.9″. SKU 46003

    Polycarbonate half-module, SKU 46002

    Polycarbonate half-module approx. 11.8″ x 15.7″ x 2.0″. SKU 46002

    Polycarbonate half-module, SKU 46006

    Polycarbonate half-module can be subdivided, approx. 11.8″ x 15.7″ x 3.9″. SKU 46006

    Polycarbonate half-module, SKU 46007

    Polycarbonate half-module can be subdivided, approx. 11.8″ x 15.7″ x 2.0″. SKU 46007

    Polycarbonate divider, SKU 46036

    Lengthwise divider for 46006, approx. 15.7″ x 3.9″. SKU 46036

    Polycarbonate divider, SKU 46037

    Crosswise divider for 46006, approx. 11.8″ x 3.9″. SKU 46037

    Polycarbonate divider, SKU 46038

    Lengthwise divider for 46007, approx. 15.7″ x 2.0″. SKU 46038

    Polycarbonate divider, SKU 46039

    Crosswise divider for 46007, approx. 11.8″ x 2.0″. SKU 46039

    Polycarbonate sub-module, SKU 46021

    Submodule as an insert can be used for modules/modular baskets, approx. 9.4″ x 4.3″ x 3.0″. SKU 46021

    Polycarbonate sub-module insert, SKU 46033

    Crossways divider for submodule, approx. 4.1″ x 2.9″ (L x H). SKU 46033

  4. ABS Modular Drawers
    ABS Modular Drawer, SKU 46206

    ABS modular drawer approx. 23.6″ x 15.7″ x 8.9″/9.6″. SKU 46206

    ABS Modular Drawer, SKU 46205

    ABS modular drawer approx. 23.6″ x 15.7″ x 4.9″/5.7″. SKU 46205

    ABS Modular Drawer, SKU 46209

    ABS modular drawer approx. 15.7″ x 23.6″ x 8.9″/9.6″. SKU 46209

    ABS Modular Drawer, SKU 46208

    ABS modular drawer approx. 15.7″ x 23.6″ x 4.9″/5.7″. SKU 46208

    ABS Modular Drawer, SKU 46204

    ABS modular drawer approx. 23.6″ x 15.7″ x 3.0″/3.7″. SKU 46204

    ABS Modular Drawer Divider, SKU 46041

    Lengthwise divider for 46206 approx. 23.6″ x 7.9″. SKU 46040

    ABS Modular Drawer Divider, SKU 46041

    Crosswise divider for 46206 approx. 15.7″ x 7.9″. SKU 46041

    ABS Modular Drawer Divider, SKU 46042

    Lengthwise divider for 46203/46205 approx. 23.6″ x 3.9″. SKU 46042

    ABS Modular Drawer Divider, SKU 46043

    Crosswise divider for 46203/46205 approx. 15.7″ x 3.9″. SKU 46043

    ABS Modular Drawer Divider, SKU 46031

    Lengthwise divider for 46204 approx. 23.6″ x 2.0″. SKU 46031

    ABS Modular Drawer Divider, SKU 46032

    Crosswise divider for 46204 approx. 15.7″ x 2.0″. SKU 46032

    ABS Modular Lockable Drawer, SKU 46466+46468

    ABS modular drawer lockable approx. 23.6″ x 15.7″ x 5.9″. SKU 46466, approx. 15.7″ x 23.6″ x 5.9″. SKU 46468

  5. Module Accessories
    46060 divider fixing

    Divider fixing Steel, blue, powder-coated. approx. 1.0″ × 0.4″ × 0.4″. SKU 46060

    46022 t connector

    T-connector (ABS). Attached at specified break points. approx. 1.9″ × 1.0″ × 1.1″. SKU 46022

    46026 drawer stop

    Drawer stop grayish-white, one-piece. For modules and modular baskets. SKU 46026

    Stopper (for Tambour-door equipped models only) SKU 46467

    Stopper for Tambour-door equipped models only. SKU 46467

  6. Labeling System

    Intelligent, innovative and efficient: the ZARGES labeling system.

    Click to download PDF.
    ZARGES labeling system
