General Details
Contact us for more information
IT carts are indispensable helpers during the daily ward rounds. They keep patients’ notes to hand at all times, in electronic form or in hard copy, as a patient file. ZARGES’ extremely versatile medical IT carts can be used for laptops, PCs and other IT peripheral devices. Choose from the tabs above for additional product options and details.
Suggested Configurations
Type 1:
- Equipped with drawers.
- Drawers mounted on telescopic rails.
- Keyboard drawer.
- VESA monitor holder.
- Fold-down worktop on the side.
- Lockable compartment for power supply, Thin Client, router.
- Charge indicator.
- Standard color: white aluminum, or customized color design using colored drawer handles.
- Central element can be supplied in a different color as a special version.
- Available in various heights.
- IT equipment and monitor not included.
Type 2: Type 2 / Nursing Documentation
- Space-saving opening through rolling tambour door. Interior fittings: variable loading with modules and modular baskets on support walls or telescopic rails. Keyboard drawer.
- VESA monitor holder.
- Lockable compartment for power supply, Thin Client, router.
- Charge indicator.
- Standard color: white aluminum.
- Central element can be supplied in a different color as a special version.
- Available in various heights.
- IT equipment and monitor not included.
Options
- Worktop options. ABS plastic and HPL plastic, with and without gallery, stainless steel.
- Aluminum handle. For convenient handling, easy to clean.
- Side wall. Also available with a colored center segment.
- Bumper. Abrasion and disinfectant resistant plastic padding.
- Precision casters. Optionally with bumper, four precision casters, ∅ 4.9 in., two of which with wheel brakes for maximum mobility in confined spaces.
- Corner posts. Made from anodized aluminum.
- Cart base. Made from sturdy HPL plastic sheet.
Front Options
Doors. Double hinged doors, behind them telescopic rails, support walls or shelf compartment
Drawers. Suitable for ZARGES ISO modules mounted on telescopic rails.
Doors & Drawers. One drawer and double hinged doors, behind them telescopic rails, support walls or shelf compartment.
Modular Drawers. Mounted on telescopic rails and removable.
Rolling Tambour Door. Space-saving opening, interior only with plastic support wall.
Worktop Surfaces
ABS*

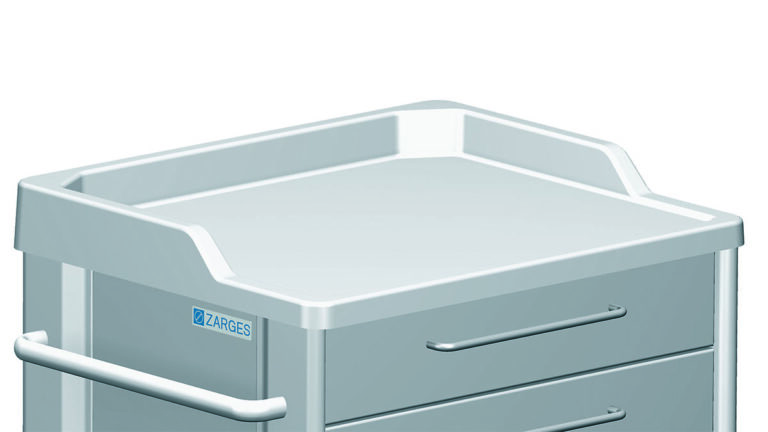

ABS with gallery*
HPL
HPL with gallery
Stainless steel
* ABS Surfaces for 1 ISO only
Locking Systems
For doors

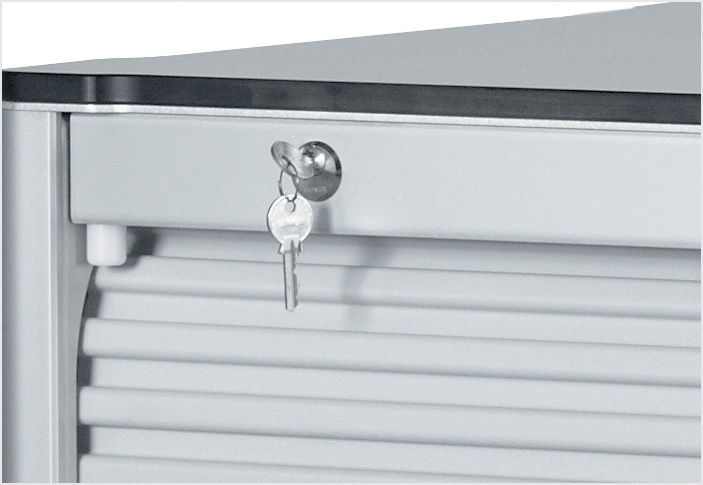

- Cylinder lock
For rolling tambour door
- Cylinder lock
- Digital lock
For drawers
- Central locking
- Lead seal rod
Interior Options
Telescopic Rails
ABS Support Walls
Notched rail and shelf compartments
Colors
RAL 7035, Light Grey
RAL 3020, Red
RAL 6019, Green
RAL 1017, Saffron Yellow
RAL 5024, Blue
Anodized Aluminum [standard]
Accessories
Corner post & accessories
| Product | Photo | Description | Variations | SKU | L” x W” x H” |
|---|---|---|---|---|---|
| Corner post |  |
For attachment of accessories, grey plastic | 8.3″ tall | 46371 | 1.2″ diameter |
| 11.8″ tall | 46289 | ||||
| Drip tray |  |
Fits 46374 | 46243 | 5.8 x 8.9 x 12.8 | |
| Glove holder |  |
For corner posts, anodized aluminum | 2 boxes | 366788 | 10.9 x 4.9 x 10.9 |
| 3 boxes | 368746 | 10.9 x 4.9 x 16.3 | |||

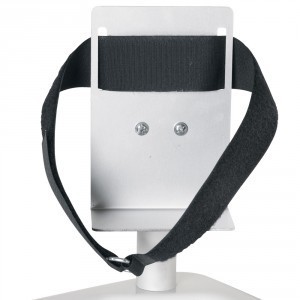

| Retaining ring |  |
For cannula disposal box, fits corner post. Anodized aluminum | 46378 | 3.9 x L x 3.8 x 5.9 | |
| Universal dispenser |  |
500 ml, fits corner post. Anodized aluminum | 46374 | 4.1 x 7.6 x 11.3 | |
| Glove holder |  |
Fits corner post. Anodized aluminum | 46372 | 5.7 x 5.9 x 9.8 | |
| All dimensions approximate. | |||||
Standard rail & accessories
| Product | Photo | Description | Variations | SKU | L” x W” x H” |
|---|---|---|---|---|---|
| Standard rail |  |
For end face. Stainless steel, glass-bead peened | 15.7″ depth | 46461 | 20.5 x 1.2 x 1.0 |
| 23.6″ depth | 46462 | 28.3 x 1.2 x 1.0 | |||
| Standard rail |  |
For rear side, 15.7″ depth. Stainless steel, glass-bead peened | 46256 | 26.6 x 1.2 x 1.0 | |

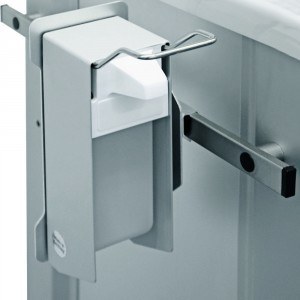

| Universal dispenser |  |
Anodized aluminum | 46375 | 5.0 x 5.9 x 11.3 | |

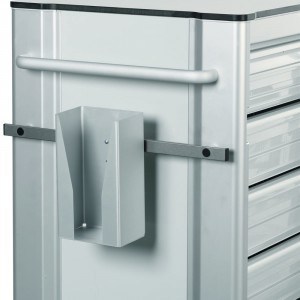

| Glove holder |  |
Anodized aluminum | 46373 | 5.7 x 4.9 x 9.8 | |

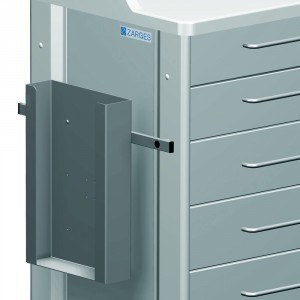

| Glove holder |  |
Anodized aluminum | 2 boxes | 369104 | 10.9 x 3.8 x 10.9 |
| 3 boxes | 367237 | 10.5 x 3.8 x 16.3 | |||

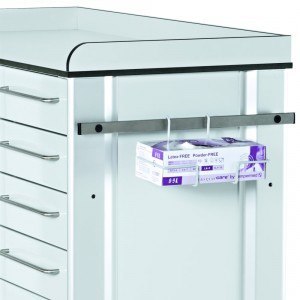

| Glove holder |  |
Single compartment. Powder coated steel | 46332 | 6.2 x 10.5 x 5.1 | |

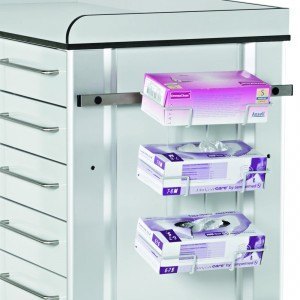

| Glove holder |  |
Triple compartment. Powder coated steel | 46331 | 10.2 x 8.1 x 15.6 | |

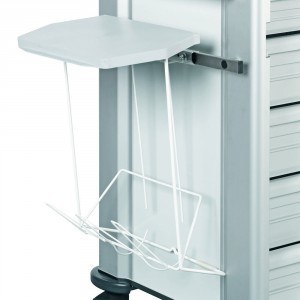

| Wire waste collection frame |  |
Powder coated steel with plastic lid | 6 liters | 46282 | 9.1 x 7.1 x 13.0 |
| 15 liters | 46283 | 11.8 x 9.1 x 17.3 | |||
| 30 liters | 46284 | 15.6 x 10.6 x 20.5 | |||
| Waste collection frame |  |
No lid. Anodized aluminum | 46241 | 9.1 x 8.1 x 16.4 | |
| Waste collection system |  |
With swing lid. White plastic | 46384 | 10.2 x 9.1 x 15.4 | |
| Document holder |  |
White plastic | 46253 | 13.8 x 3.9 x 12.4 | |
| Fixing |  |
Fits instrument tray [46390], with lid slot. Anodized aluminum | 369358 | 13.4 x 11.8 x 3.9 | |
| Holder for half module |  |
Light grey powder coated steel | 46314 | 17.7 x 13.8 x 3.0 | |
| Retaining ring |  |
For cannula disposal box. Powder coated steel. Inside diameter: 4.7″ | 46335 | 5.7 x 5.1 x 6.3 | |
| Retaining ring |  |
For cannula disposal box. Anodized aluminum | 46244 | 3.9 x 2.8 x 5.9 | |

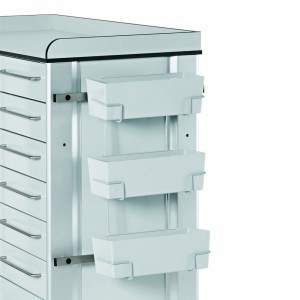

| Zip box holder |  |
Triple compartment, plastic coated steel | 46333 | 7.1 x 13.7 x 22.6 | |

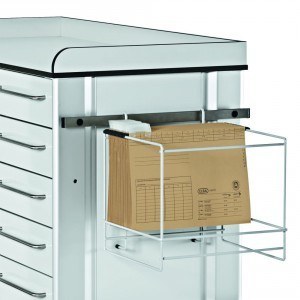

| Wire file holder |  |
Plastic coated steel | 46337 | 14.6 x 13.3 x 13.8 | |

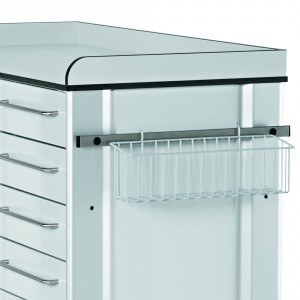

| Wire basket |  |
Powder coated steel | 46334 | 5.0 x 15.9 x 5.7 | |
| Catheter racks |  |
Powder coated aluminum | 46391 | 6.4 x 3.7 x 22.0 | |
| All dimensions approximate. | |||||
Bar structure & accessories
| Product | Photo | Description | Variations | SKU | L” x W” x H” |
|---|---|---|---|---|---|

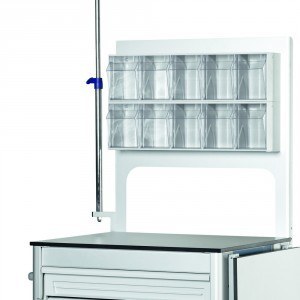

| Bar structure, double row |  |
For accessories, mounted on rear wall, for 15.7″ deep carts. Anodized aluminum | 46295 | 26.2 x 1.8 x 32.3 | |
| Mount for corner post |  |
Mounts to side of bar structure for accessories. Powdered steel, light grey | 364779 | 3.9 x 3.7 x 0.8 | |
| Syringe dispenser (FIFO) |  |
Grey plastic, transparent chutes | 3 chutes | 46245 | 23.6 x 7.9 x 9.7 |
| 5 chutes | 46246 | 23.6 x 5.3 x 6.5 | |||
| Syringe dispenser |  |
Grey plastic, transparent chutes | 3 chutes | 46290 | 23.6 x 7.8 x 9.4 |
| 5 chutes | 46291 | 23.6 x 5.3 x 6.5 | |||
| All dimensions approximate. | |||||
Side mounted accessories
| Product | Photo | Description | SKU | L” x W” x H” |
|---|---|---|---|---|
| Folding worktop |  |
For 15.7″ depth carts. Light grey ABS plastic | 46299 | 20.6 x 15.7 x 1.8 |
| Folding worktop |  |
For 15.7″ depth carts. Light grey HPL plastic | 46463 | 19.8 x 16.1 x 1.4 |
| Folding worktop |  |
With raised edges, for 15.7″ depth carts. Light grey ABS plastic | 46288 | 19.8 x 16.1 x 2.2 |
| Waste collection system |  |
8 liters, knee operated. Grey plastic | 46297 | 8.7 x 8.7 x 14.2 |
| Lifting hooks |  |
Set of two. For information boards. | 46247 | 3.0 x 1.2 x 2.8 |

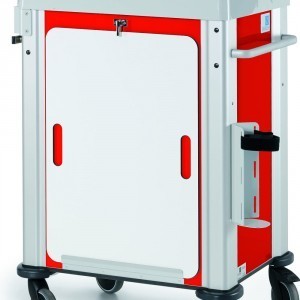

| CPR board |  |
Mounted on rear of 15.7″ depth carts. Light grey HPL plastic | 46137 | 28.7 x 19.7 x 0.2 |
| Oxygen bottle holder |  |
For mounting of profiles of the end face. Light grey powdered steel | 46136 | 5.1 x 4.3 x 11.4 |

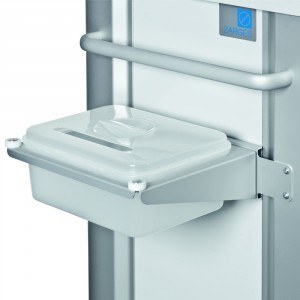

| Instrument tray |  |
With lid slot for disposal of instruments. Plastic | 46390 | 11.2 x 8.5 x 5.1 |
| Holder |  |
Fits instrument tray [46390], with lid slot. Anodized aluminum | 376015 | 17.9 x 11.8 x 4.0 |
| All dimensions approximate. | ||||
Other accessories
| Product | Photo | Description | SKU | L” x W” x H” |
|---|---|---|---|---|

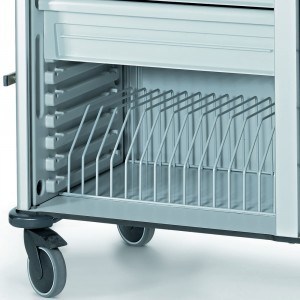

| Holder for x-ray envelopes |  |
15 compartments, plastic-coated steel | 46339 | 23.6 x 13.8 x 7.8 |

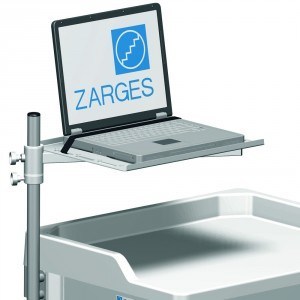

| Laptop pivot arm |  |
Plastic coated steel. Measurements are size of surface | 46251 | 17.1 x 12.3 |
| Laptop drawer |  |
Lockable, pulls out on one side. Surface HPL. Measurements are of compartment size. | custom | 24.7 x 12.5 x 2.8 |
| Infusions holder |  |
For mounting in corner post position. Chrome plated steel | 46381 | 9.8 x 9.8 x 22.4 |
| All dimensions approximate. | ||||
Modules
ABS Modules, Baskets and Dividers
ABS modular basket approx. 23.6″ x 15.7″ × 7.9″. SKU 46000
ABS modular basket approx. 23.6″ x 15.7′ × 3.9″. SKU 46005
ABS Module Lid approx. 23.6″ x 15.7″× 0.6″. SKU 46201
ABS module approx. 23.6″ x 15.7″× 2.0″. SKU 46011
ABS module approx. 23.6″ x 15.7″ × 3.9″. SKU 46202
ABS module (not sub-dividable) approx. 23.6″ x 15.7″ × 7.9″. SKU 46200
Lengthwise divider (for 46000) approx. 23.6″ × 7.9″. SKU 46027
Crosswise divider (for 46000) approx. 15.7″ × 7.9″. SKU 46028
Lengthwise divider (for 46005 / 46202) approx. 23.6″ × 3.9″. SKU 46029
Crosswise divider (for 46005 / 46202) approx. 15.7″ × 3.9″. SKU 46030
Lengthwise divider (for 46011) approx. 23.6″ × 2.0″. SKU 46034
Crosswise divider (for 46011) approx. 15.7″ × 2.0″. SKU 46035
Polycarbonate Modules, Baskets and Dividers
Polycarbonate modular basket approx. 23.6″ x 15.7″ x 7.9″. SKU 46001
Polycarbonate modular basket approx. 23.6″ x 15.7″ x 3.9″ SKU 46004
Polycarbonate module approx. 23.6″ x 15.7″ x 3.9″ SKU 46203
Polycarbonate medication module approx. 23.6″ x 15.7″ x 2.0″ SKU 46010
Lengthwise divider for 46001. approx. 23.6″ x 7.9″ SKU 46040
Crosswise divider for for 46001. approx. 15.7″ x 7.9″ SKU 46041
Lengthwise divider for 46004/46203/46205. approx. 23.6″ x 3.9″ SKU 46042
Crosswise divider for 46004/46203/46205. approx. 15.7″ x 3.9″ SKU 46043
Lengthwise divider for 46010/46204. approx. 23.6″ x 2.0″ SKU 46031
Crosswise divider for 46010/46204. approx. 15.7″ x 2.0″ SKU 46032
Polycarbonate Half-Modules and Dividers
Polycarbonate half-module approx. 11.8″ x 15.7″ x 3.9″. SKU 46003
Polycarbonate half-module approx. 11.8″ x 15.7″ x 2.0″. SKU 46002
Polycarbonate half-module can be subdivided, approx. 11.8″ x 15.7″ x 3.9″. SKU 46006
Polycarbonate half-module can be subdivided, approx. 11.8″ x 15.7″ x 2.0″. SKU 46007
Lengthwise divider for 46006, approx. 15.7″ x 3.9″. SKU 46036
Crosswise divider for 46006, approx. 11.8″ x 3.9″. SKU 46037
Lengthwise divider for 46007, approx. 15.7″ x 2.0″. SKU 46038
Crosswise divider for 46007, approx. 11.8″ x 2.0″. SKU 46039
Submodule as an insert can be used for modules/modular baskets, approx. 9.4″ x 4.3″ x 3.0″. SKU 46021
Crossways divider for submodule, approx. 4.1″ x 2.9″ (L x H). SKU 46033
ABS Modular Drawers
ABS modular drawer approx. 23.6″ x 15.7″ x 8.9″/9.6″. SKU 46206
ABS modular drawer approx. 23.6″ x 15.7″ x 4.9″/5.7″. SKU 46205
ABS modular drawer approx. 15.7″ x 23.6″ x 8.9″/9.6″. SKU 46209
ABS modular drawer approx. 15.7″ x 23.6″ x 4.9″/5.7″. SKU 46208
ABS modular drawer approx. 23.6″ x 15.7″ x 3.0″/3.7″. SKU 46204
Lengthwise divider for 46206 approx. 23.6″ x 7.9″. SKU 46040
Crosswise divider for 46206 approx. 15.7″ x 7.9″. SKU 46041
Lengthwise divider for 46203/46205 approx. 23.6″ x 3.9″. SKU 46042
Crosswise divider for 46203/46205 approx. 15.7″ x 3.9″. SKU 46043
Lengthwise divider for 46204 approx. 23.6″ x 2.0″. SKU 46031
Crosswise divider for 46204 approx. 15.7″ x 2.0″. SKU 46032
ABS modular drawer lockable approx. 23.6″ x 15.7″ x 5.9″. SKU 46466, approx. 15.7″ x 23.6″ x 5.9″. SKU 46468
Module Accessories
Divider fixing Steel, blue, powder-coated. approx. 1.0″ × 0.4″ × 0.4″. SKU 46060
T-connector (ABS). Attached at specified break points. approx. 1.9″ × 1.0″ × 1.1″. SKU 46022
Drawer stop grayish-white, one-piece. For modules and modular baskets. SKU 46026
Stopper for Tambour-door equipped models only. SKU 46467
